KTM 690 Enduro 2008 2013 RFR Adventure kit

In Stock

Sku:337

4,114.00

Compare

This kit comes with 18L total fuel capacity with a Vacuum Micuni pump (OEM KTM RALLY PART)  .It comes with RFR  navi tower ,made from Aluminium ,finished black color, which can hold your speedo and any kind of GPS or other equipment you need to add.
The lights are Hella brand ,street legal worldwide and its High – Low ,comes with their wiring harness and its already pre assembled on the tower.
The kit comes ready painted white ,optionally can be painted any other color and add any grafix you like at an extra cost .Fairing is made of fiberglass with extra reinforcement of Kevlar at mounting points .Fuel tanks comes with billet CNC fillers and Acerbis caps and OEM KTM petcocks.Finally the CF bash plate gives the best protection for your engine and fuel tanks.

Analytic details of the kit:

FUEL PUMP/FUEL HOSES:
With this vacuum pump you will have the fuels transfered from front tanks to main rear tank and from there to the bike.Frond and rear tanks are linked with our rear tank adapter .High quality fuel hoses reinforced ,couplings and connectors including .

ENGINE GUARD:
This kit includes a Carbon Fiber engine and fuel tanks protection with its brackets .
All the parts comes ready to mount and comes with instructions for an easy installation.
As extra you can add a CF toolbox ,extra cost 70 euro .Comes installed on the engine guard with its lid.

FAIRING:
We use the 450 RFR fairing DAKAR RALLY  ,headlight mask -side panels and the middle connector .These parts are made from high quality fiberglass ,kevlar reinforcement on mounting points ,white gel coat finish and all are pre drilled .

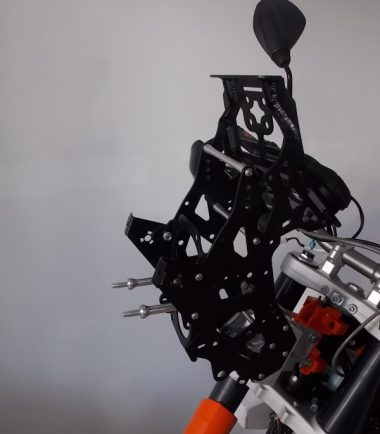

NAVIGATION TOWER:
The navigation tower is made from aluminium and comes ready pre assembled .It comes with bracket for OEM speedo and you can add any GPS or other navigation equipment you have .It fits direct on the bike with the OEM KTM supports bracket which comes with the navi tower.
Tower comes ready and contain:

  • 1x (76212090040) OEM ATTACHMENT FOR NAVI SUPP. L/S
  • 1x (76212090050) OEM ATTACHMENT FOR NAVI SUPP. R/S
  • 2x (76214010010) FRONT MASK MOUNTING MANDREL
  • 1x (76214010033) HEADLIGHT ATTACHMENT
  • 3x (76212090015) BRACING NAVIGATION DEVICE
  • 1x (76212090060) OIL RADIATOR SUPPORT PLATE
  • 1x (76212090010) MOUNTING PLATE NAVIGAT. DEVICE
  • 1x (76212090013) MOUNT. PLATE NAV. DEVICE RIGHT
  • 1x (76214010030) RETAINING PLATE FRONT MASK LE
  • 1x (76214010040) RETAINING PLATE FRONT MASK RI
  •  1x (76212090035) COVER FOR NAVIGATION SUPPORT
  • Instruments Support (Speedo – GPS Modana) Headstock bracket Screws – Rubbers

FUEL TANKS:
Our fuel tanks are made with Carbon Fiber ,multiple layers of mixed Carbon Fibers .Mixed Epoxy resins the best in the market and specially for fuel resist .Fuel tanks are reinforced inside with vinylester for extra protection on fuel resistance .
We use aluminium fillers , Acerbis fuel caps,KTM OEM rubber bashes,KTM OEM petcocks .
Fuel tanks comes painted white .Avaliable option to comes painted at any color you prefer (at an extra cost of 100 euro )
The design of our fuel tanks are made based on the OEM KTM Rally Dakar fuel tanks .These tanks can not be mount with stock exhaust and stock seat

LIGHTING SYSTEM:
We choose to go with OEM lighting system ,as the Dakar bikes and also as many other Auto-Moto industies go .Hella lights Hi-Lo .Comes with plug and play hight quality wiring harness .
Lights details:

60mm High Beam Light

Features:
• Very versatile high beam lamp
• High performance in a compact design
• Exceptional performance and light distribution

Specifications:
• Voltage: 12V
• Beam Pattern: High Beam
• Light Source: HB3 / 9005 12V/65W Bulb (T3-1/4 12V/3W (W3W) Bulb)
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: (021) ECE/SAE (031) ECE

60mm Low beam light

Features:

• Very versatile low beam lamp
• High performance in a compact design
• Exceptional performance and light distribution

Specifications:
• Voltage: 12V
• Beam Pattern: Low Beam
• Light Source: HB3 / 9005 12V/65W Bulb
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: SAE (For Motorcycles only) / ECE

BRACKETS:
All our bracket systems are made in order to fit fast ,clean and without any special tool .Comes with detailed instructrions .No need to cut or weld anything on the bike frame .

All parts comes ready ,painted ,drilled,finished ,with all their rubbers,screws,nuts and anything else you need to install them fast and easy .



PLEASE NOTE THESE VERY IMPORTANT THINGS !

  • LOWER EXHAUST PIPES DONT INCLUDE IN THE KIT
  • RALLY SEAT DONT INCLUDE IN THE KIT

The above parts are not including ,these parts can be ordered for you on a third party company after request at an extra cost .

Except of the kit we offer some extra parts at an extra cost which you can add :

1.Comfort seat :
Our seats are made from Carbon Kevlar seat pan , comfort foam , suede cover with rally pocket in the front . 380 euro

2.Lower fender :
Lower fenders we offer are replica fenders of the OEM KTM Dakar bike .2 options on the materials ,fiberglass and Carbon Fiber . Are very strong ,durable with perfect fitment on the KTM 690 Enduro 2008-2018.
Fiberglass fender comes gel coat white 140 euro
Carbon Fiber is comming finished matte or glossy. 265 euro
Both are Un drilled

3.Carbon Fiber Navi tower:
This is a great upgrade of the kit ,if you are looking for an ultra light strong tower to fit your Roadbook equipment then this is the best option .Tower weights 900g
Upgrade Price from alum to CF 250 euro

4.Radiator grill protection
The best way to protect your expensive radiator .CNC Laser cutted ,perfect design ,light weight .Direct replacement of the plastic protector .More air to radiator ,better protection !
109 euro

MANUFACTURER

KTM

MATERIAL

fiberglass

MODEL

KTM 690 Enduro

Make Model Year
KTM 450 RALLY REPLICA 2011 - 2014
KTM 690 Enduro/R 2008 - 2013
