Sale
Complete adventure Carbon Fiber Navi Tower kit 1,223.91
Honda XL 600V Transalp Dual Headlight front fairing 116.87

Adventure – Rally Universal Navigation Tower

In Stock

301.75

0.00

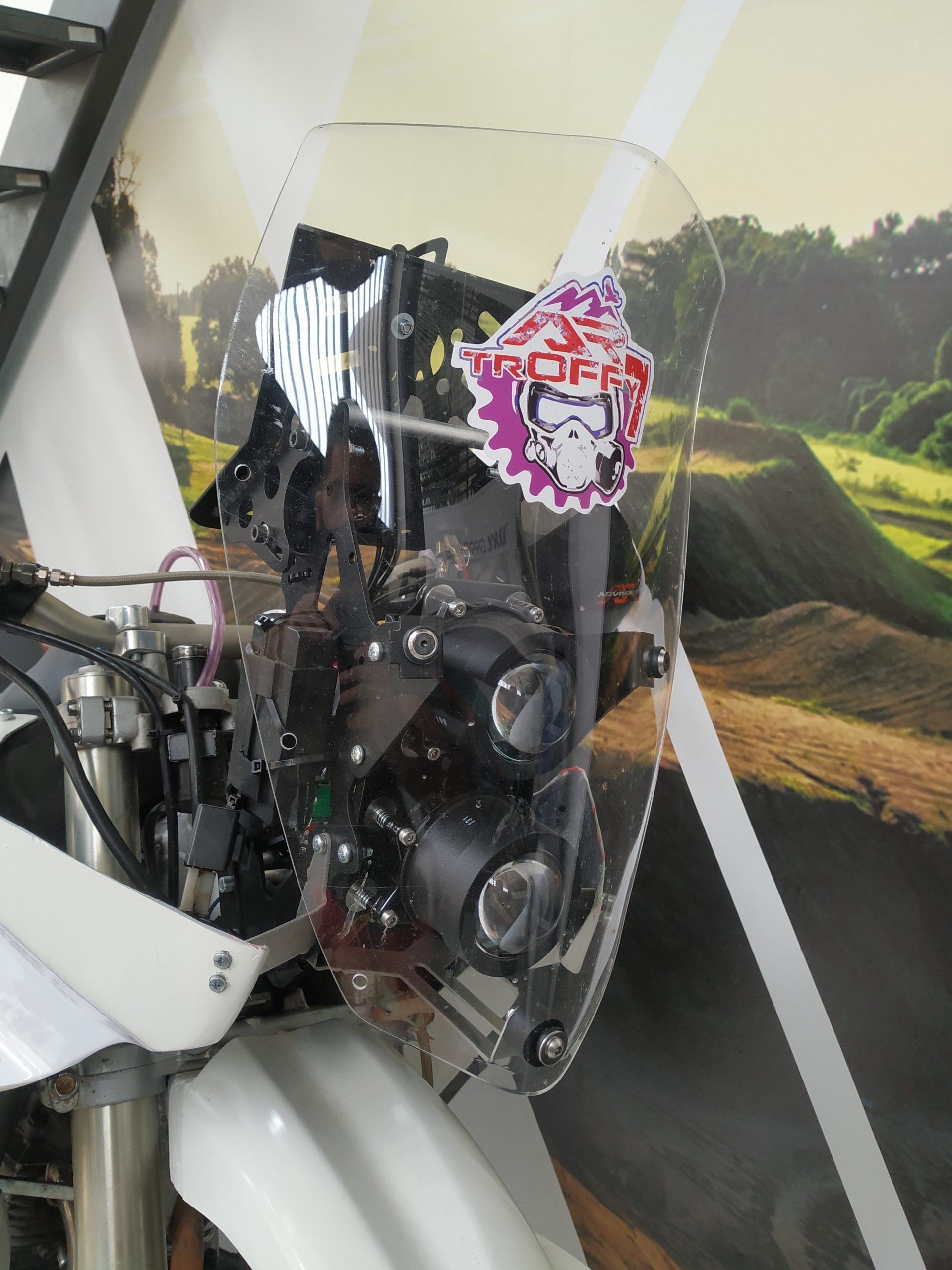

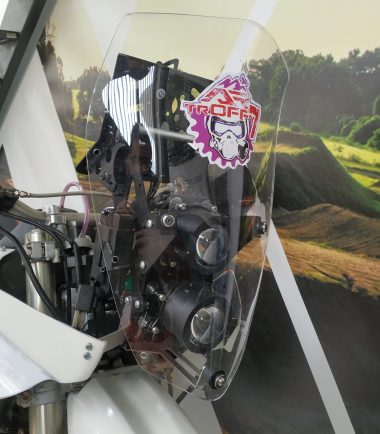

Mask and windshield are the same products as shown on pictures .
0.00
0.00
  • Options Price: 0.00
  • Product Price: 301.75
  • Total: 0.00
Compare

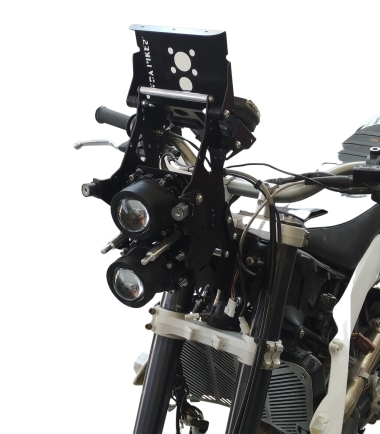

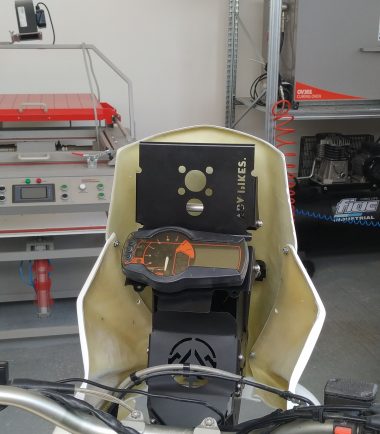

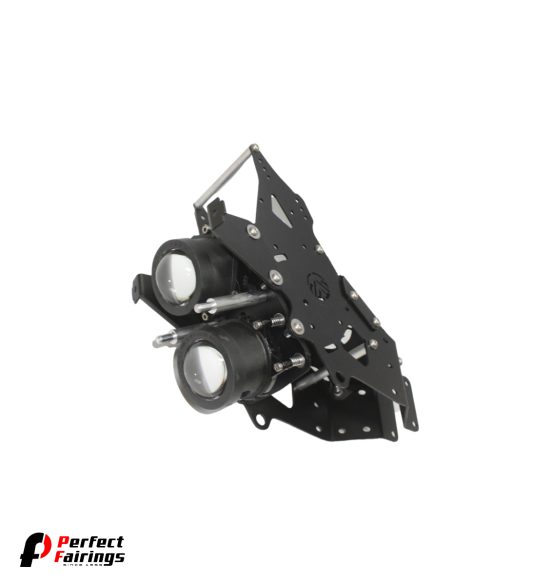

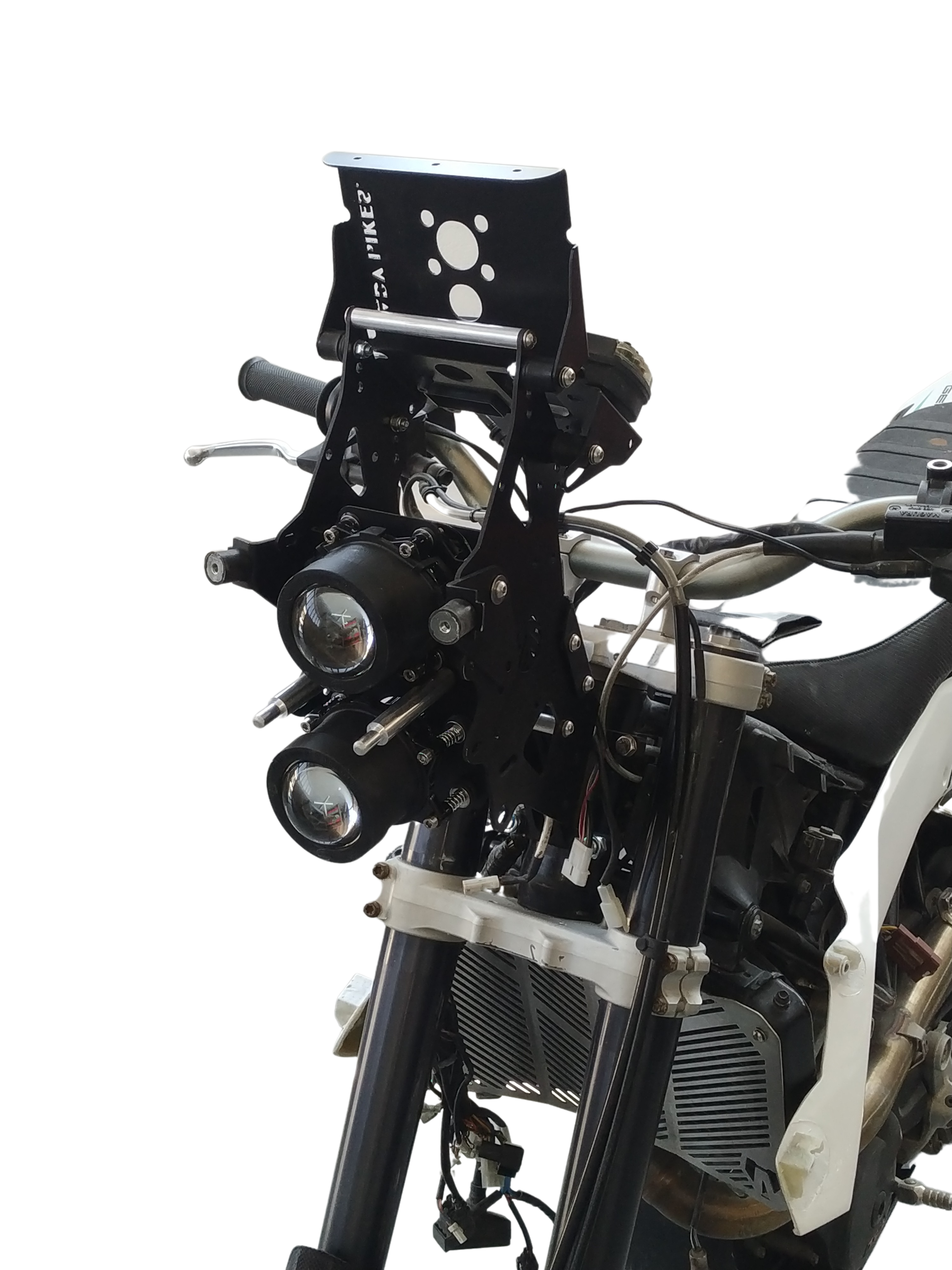

Universal Navigation Tower

if you are building your DIY rally bike and you are in need for a navigation tower then look no more. We have exactly what you need .

A great universal navigation tower to install your  lights  ,your OEM speedometer ,your GPS or other equipment you need to install.

You can choose between  a fairing mask or a windshield in order to get a complete set up or just buy the main navigation and add your lights and your equipment .

  • Its made of high grade aluminium
  • Black coat finish
  • Incude the speedo and GPS mount
  • Comes with spacers ,screws and antivibration rubbers for the Speedo/GPS plate



You can also choose to add a frame adapter , headlights and choose the correct speedometer holder . We can make a specific speedometer holder to cover you real needs  !



PLEASE NOTE !!! PRICE OF 265 EURO IS FOR JUST THE NAVIGATION TOWER AND SPEEDOMETER HOLDER NO LIGHTS – MASK -WIDSHIELD OR OTHER EQUIPMENT .



HEADLIGHTS SPECS:



Module 60 LED

➔ Particularly compact LED headlamp series

➔ Specially developed lens system for homogeneous illumination

➔ Enables easy conversion from halogen to LED technology

PRODUCT FEATURES :
Anyone on the road or in the field at night must be able to rely one hundred percent on their illumination. HELLA’s compact Module 60 LED headlamp series provides particularly homogeneous illumination and offers exactly the safety and reliability required on the road as well as in offhighway applications. The lens system specially developed by HELLA focuses the light of the LEDs and distributes it ideally over the application area. Additionally, the products are durable and resistant to vibration, dirt and water.
A special version with an additional mounting frame is available for agricultural and construction machinery. The fixing points of the mounting frames are identical to those of the already established Module 60 halogen headlamp series. Thus, the conversion to LED technology is even easier and faster with this version, in just a few steps. The modules are available as low beam or high beam version.



Technical data:
Operating voltage/ Rated voltage 12 V Light source type LED
Power consumption 16 W
Colour temperature 6000 K
Protection class IP 6K9K and IP 6K7
Type approval ECE, FMVSS108
Housing Aluminum die cast Protection Overheating and reverse polarity protection Connection TYCO connector (HB3)
Lens material Glass
Manufactured in Austria
Weight 278 g



Including:

Hi beam LED LIGHT

Lo beam LED LIGHT



KTM OEM PART NUMBER :

# 76714001000  – Low beam

# 76714002000  – High beam



Halogen lights

SPECS:

60mm High Beam

Ideal for:
• Retrofit
• Motorcycles

Features:
• Very versatile high beam lamp
• High performance in a compact design
• Exceptional performance and light distribution

Specifications:
• Voltage: 12V
• Beam Pattern: High Beam
• Light Source: HB3 / 9005 12V/65W Bulb (T3-1/4 12V/3W (W3W) Bulb)
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: (021) ECE/SAE (031) ECE

Mounting:
• Flush

Single Lamp Includes:
• (1) Lamp
• (1) Halogen Bulb



60mm Low beam:

Ideal for:
• Motorcycles

Features:
• Very versatile low beam lamp
• High performance in a compact design
• Exceptional performance and light distribution

Specifications:
• Voltage: 12V
• Beam Pattern: Low Beam
• Light Source: HB3 / 9005 12V/65W Bulb
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: SAE (For Motorcycles only) / ECE

Mounting:
• Flush

Single Lamp Includes:
• (1) Lamp
• (1) Halogen Bulb
