KTM 690 ENDURO ADV-RALLY KIT 2008-2018

In Stock

Sku:247

4,990.00

?Adventure riding must be as much comfort it can be , we can search and find the best comfort seats for you! This option is for a complete seat ready for your next adventure.
?Lower fender i,fiberglass made with white gel coat finish . Avaliable also on black gel coat finish .
?Lower fender Carbon Fiber with a great glossy finish.
?Maybe the most important part ,just remove the big and bulky plastic protection and add your new aluminium stylish protection on your radiator.
?Street legal LED lights ,made from Hella . These are motorcycle LED lights and not LED lights which can work on a motorcycle !
?For the Carbon Fiber and low weight lovers ,an amazing piece of art .Extremely low weight but also very very strong.
?Make your kit looks like a real rally bike by adding a kit of decals ,made with the top materials .Very thick and hard .You can choose from our standard designs or you can make your own design !
Clear selection
0.00
Option 1 +
Option 2 +
option 3 +
option 4 +
option 5 +
option 6 +
  • Options Price: 0.00
  • Product Price: 4,990.00
  • Total: 0.00
Compare

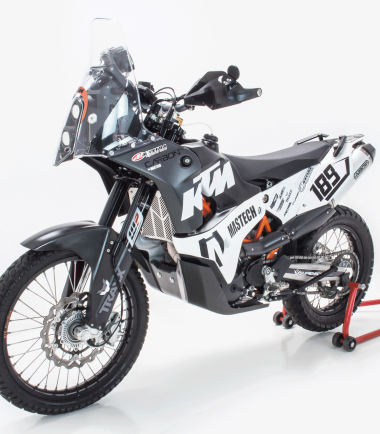

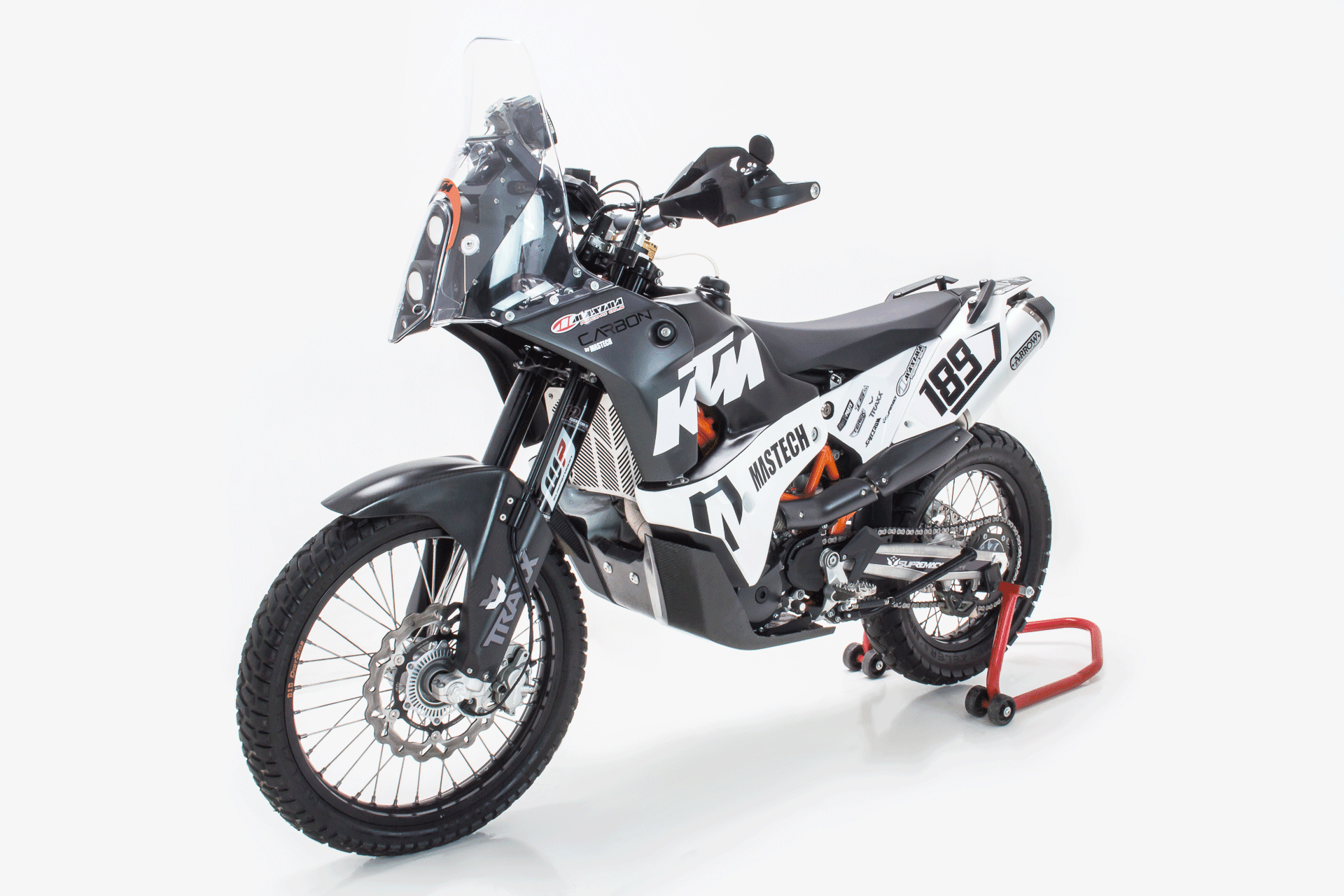

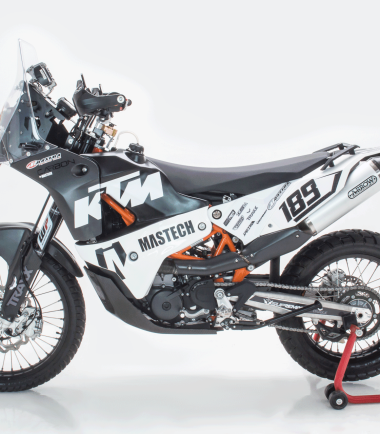

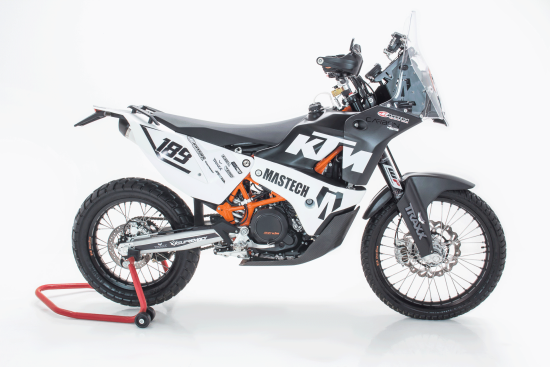

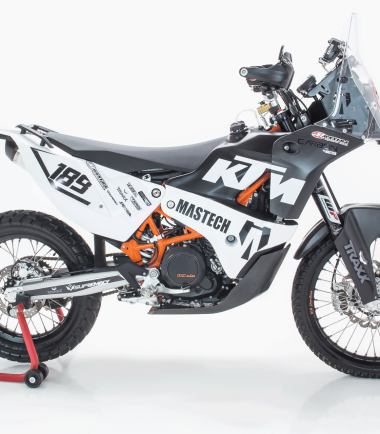

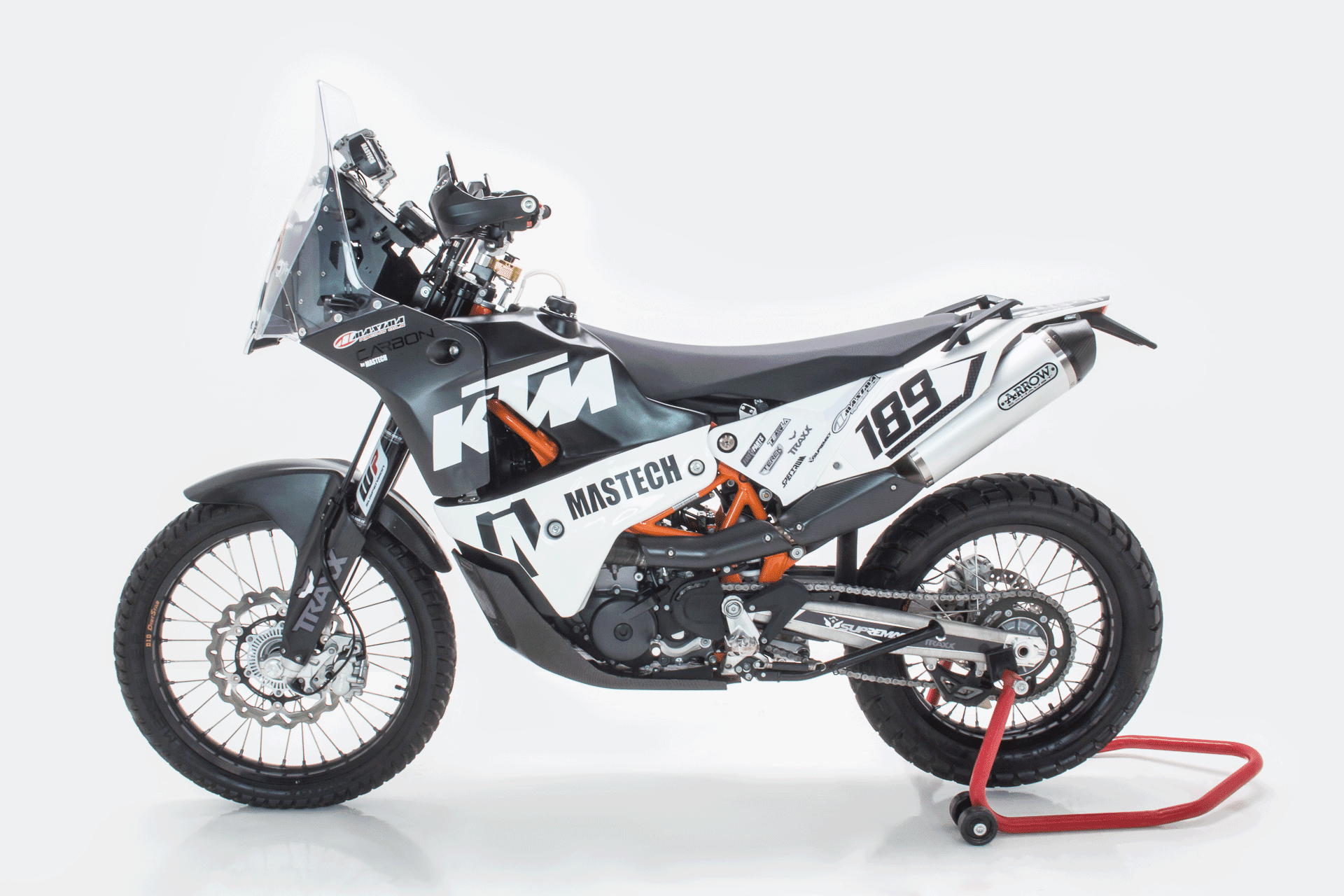

KTM 690 ENDURO 2008-2018

ADV-RALLY KIT

The best kit in the market which work with stock seat ,stock exhaust pipes and comes ready to mount on your bike !

No need to cut , weld , drill anything on your bike .

This kit comes with 14L total fuel capacity with a KEIHIN (OEM KTM RALLY PART) extra fuel pump in the front tanks .It comes with our hard tested and great navi tower ,made from Aluminium ,finished black color, which can hold your speedo and any kind of GPS or other equipment you need to add.
The lights are Hella brand ,street legal worldwide and its High – Low ,comes with their wiring harness and its already pre assembled on the tower.
The kit comes ready painted white ,optionally can be painted and add any grafix you like at an extra cost .

Analytic details of the kit:

FUEL PUMP/FUEL HOSES:
The extra pump works with its own wiring harness which included in the kit .With this extra pump you will have the full access on which fuel tank will work first as it comes with a switch wich you choose if you will go with the front or the rear .Better balance on the fuels,the wiring harness includes an indicator which warning you when the front tanks runs out of fuel.
It comes with 2x one way valves to protect your fuel pumps from returning fuel .High quality fuel hoses reinforced ,couplings and connectors including .

ENGINE GUARD:
This kit includes a Carbon Fiber engine and fuel tanks protection with its brackets .
All the parts comes ready to mount and comes with instructions for an easy installation.
As extra you can add a CF toolbox ,extra cost 70 euro .Comes installed on the engine guard with its lid.

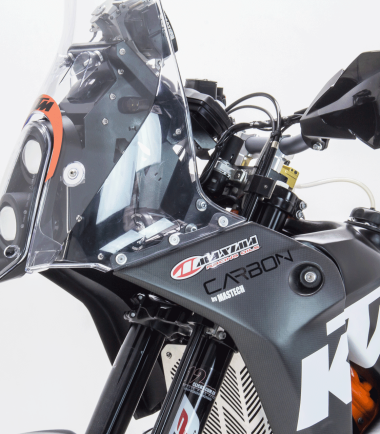

WINSHIELD ,OEM PARTS:
We use the OEM KTM DAKAR RALLY windshield ,headlight mask and stone guard protector for the lights .These parts comes direct from KTM ,they are tested for over 4 Dakar rallies and on the hardest rally raid condition arround the world.

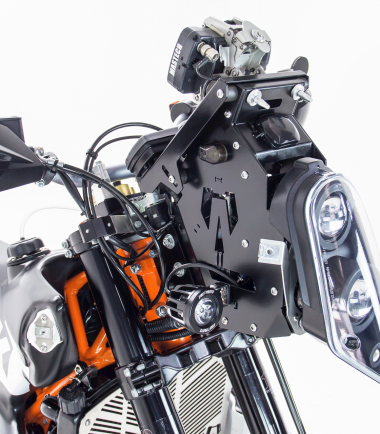

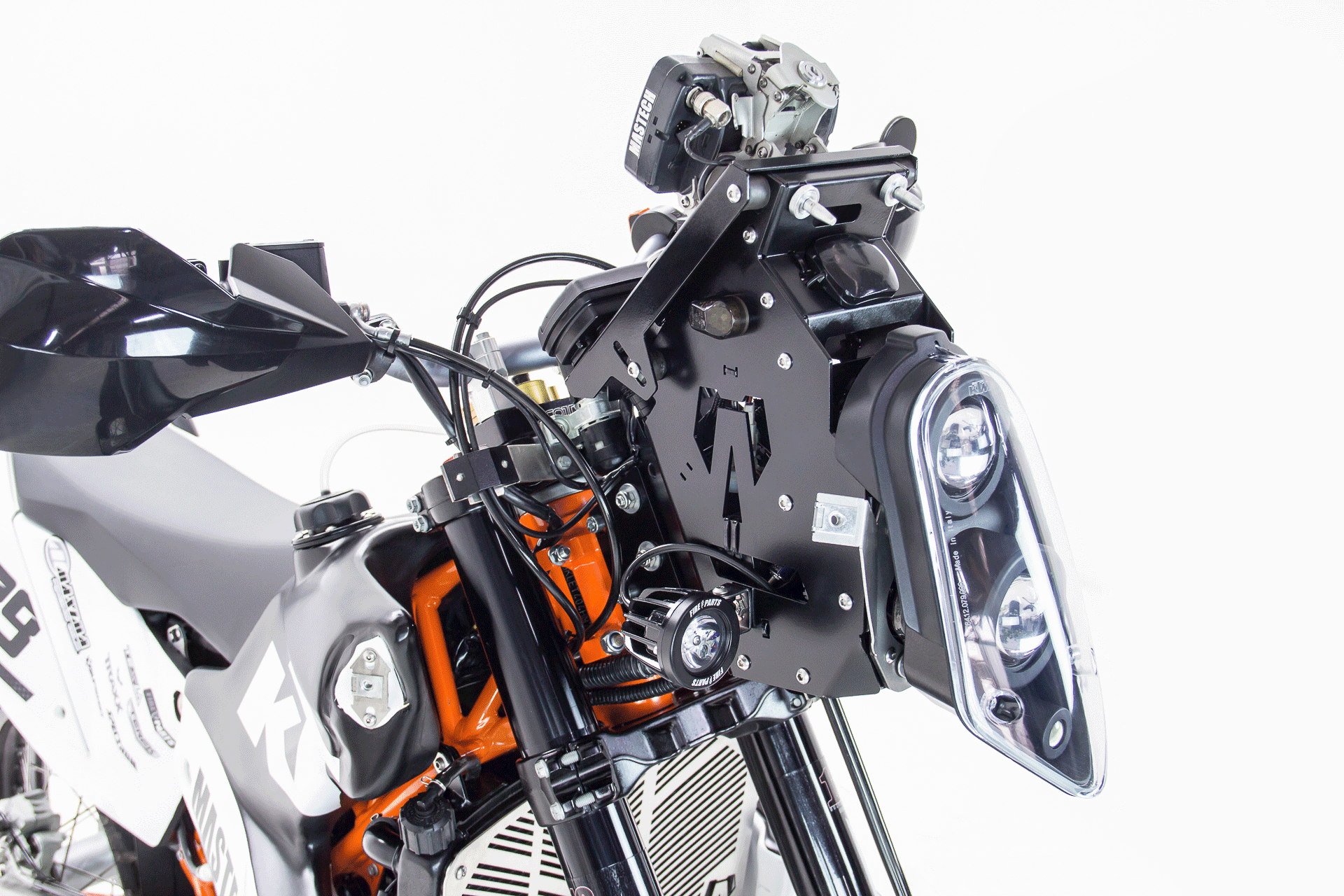

NAVIGATION TOWER:
The navigation tower is made from aluminium and comes ready pre assembled .It comes with bracket for OEM speedo and you can add any GPS or other navigation equipment you have .It fits direct on the bike with the support bracket which comes with the navi tower.
Tower comes ready with pre installed headlight mask ,lights,lights stone guard .

FUEL TANKS:
Our fuel tanks are made with Carbon Fiber ,multiple layers of mixed Carbon Fibers .Mixed Epoxy resins the best in the market and specially for fuel resist .Fuel tanks are reinforced inside with vinylester for extra protection on fuel resistance .
We use aluminium fillers , Acerbis fuel caps,KTM OEM rubber bashes,KTM OEM petcocks .
Fuel tanks comes painted white .Avaliable option to comes painted at any color you prefer (at an extra cost of 100 euro )
The design of our fuel tanks are made based on the OEM KTM Rally Dakar fuel tanks ,they have a direct fit which allow the stock exhaust and stock seat works perfectly .No need to cut anything from the bike frame in order to fit the tanks.

LIGHTING SYSTEM:
We choose to go with OEM lighting system ,as the Dakar bikes and also as many other Auto-Moto industies go .Hella lights Hi-Lo .Comes with plug and play hight quality wiring harness .
Lights details:

60mm High Beam Light

Features:
• Very versatile high beam lamp
• High performance in a compact design
• Exceptional performance and light distribution

Specifications:
• Voltage: 12V
• Beam Pattern: High Beam
• Light Source: HB3 / 9005 12V/65W Bulb (T3-1/4 12V/3W (W3W) Bulb)
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: (021) ECE/SAE (031) ECE

60mm Low beam light

Features:

• Very versatile low beam lamp
• High performance in a compact design
• Exceptional performance and light distribution

Specifications:
• Voltage: 12V
• Beam Pattern: Low Beam
• Light Source: HB3 / 9005 12V/65W Bulb
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: SAE (For Motorcycles only) / ECE

BRACKETS:
All our bracket systems are made in order to fit fast ,clean and without any special tool .Comes with detailed instructrions .No need to cut or weld anything on the bike frame .

All parts comes ready ,painted ,drilled,finished ,with all their rubbers,screws,nuts and anything else you need to install them fast and easy ,

Except of the kit we offer some extra parts at an extra cost which you can add :

1.Comfort seat :
Our seats are made from Carbon Kevlar seat pan , comfort foam , suede cover with rally pocket in the front . 380 euro

2.Lower fender :
Lower fenders we offer are replica fenders of the OEM KTM Dakar bike .2 options on the materials ,fiberglass and Carbon Fiber . Are very strong ,durable with perfect fitment on the KTM 690 Enduro 2008-2018.
Fiberglass fender comes gel coat white 140 euro
Carbon Fiber is comming finished matte or glossy. 265 euro
Both are Un drilled

3.Carbon Fiber Navi tower:
This is a great upgrade of the kit ,if you are looking for an ultra light strong tower to fit your Roadbook equipment then this is the best option .Tower weights 900g
Upgrade Price from alum to CF 250 euro

4.Radiator grill protection
The best way to protect your expensive radiator .CNC Laser cutted ,perfect design ,light weight .Direct replacement of the plastic protector .More air to radiator ,better protection !
109 euro



*PRODUCTION TIME 4-5 WEEKS

MANUFACTURER

KTM

MATERIAL

carbon fiber

MODEL

KTM 690 Enduro

Make Model Year
KTM 690 Enduro/R 2008 - 2018
